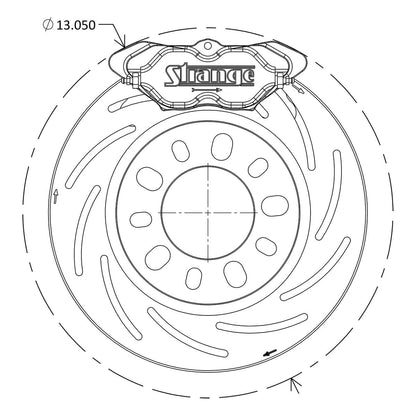

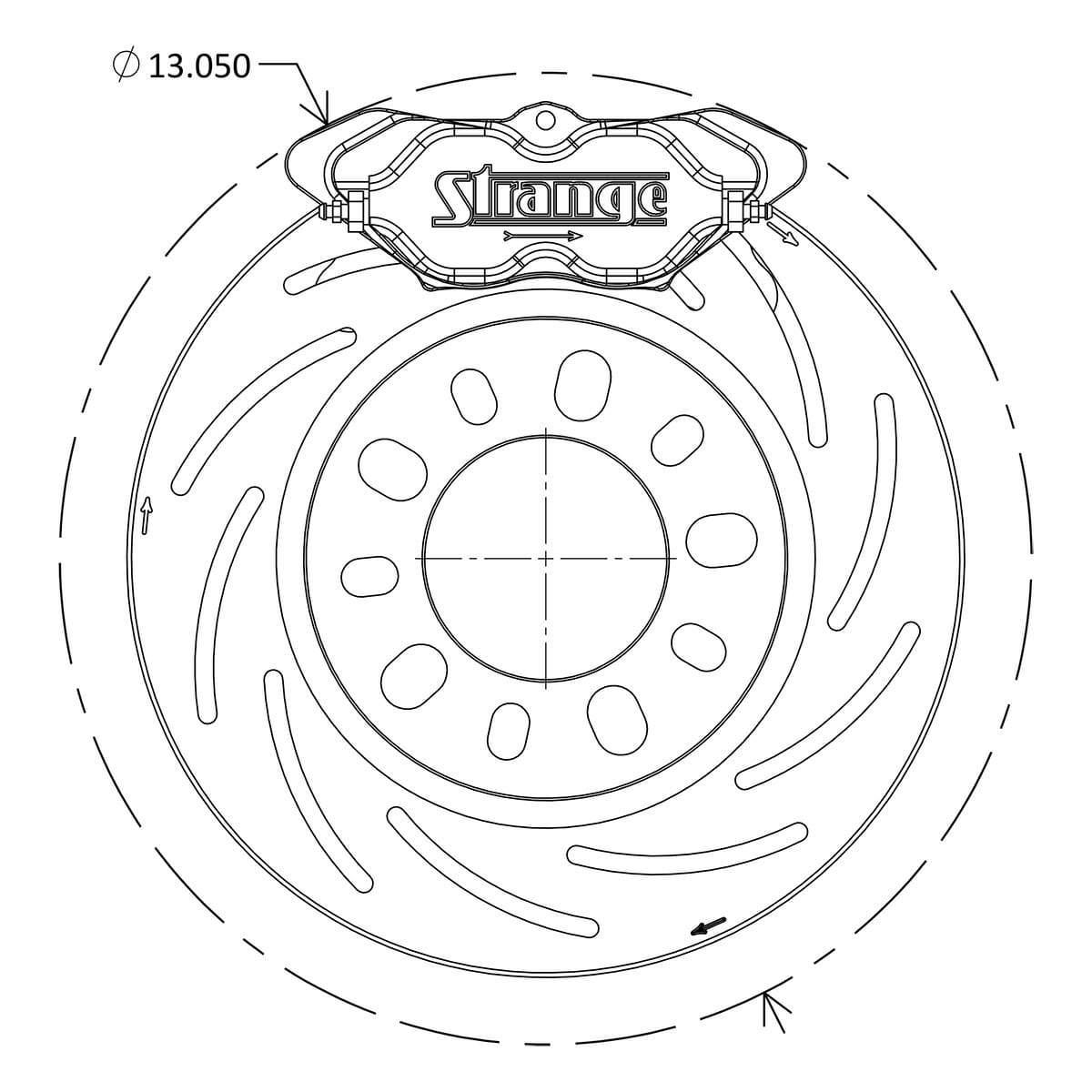

Strange Engineering Pro Series Rear Brake Kit For 3.150" Symmetrical Housing Ends With Slotted Rotors, Four Piston Calipers & Soft Metallic Pads

Designed Specifically For Drag Racing

Application
Symmetrical 3.150″ housing ends

Requires
• H1131 housing ends or equivalent
• 2.832″ brake offset
• Ball style axle bearings *

* Caliper mount relief isn’t correct for tapered bearings

For Symmetrical 3.350″ ends – B1711WC

One Piece Forged Steel Rotors – B2792 / B2793
• Directional slots increase air flow and reduce weight
• One piece design eliminates bolts & safety wire
• Hat section drilled & milled to further reduce weight
• 4 1/2″, 4 3/4″ & 5″ Uni-Lug bolt circles for both 1/2″ & 5/8″ studs

Four Piston Directional Calipers – B5002 / B5004
• Aluminum bodies drastically reduce weight
• 1.625″ & 1.750″ pistons vary pressure decreasing pad taper
• Stainless steel pistons resist corrosion
• Anti-rattle clips reduce brake pad vibration and noise

DTC-30 Semi Metallic Brake Pads – B5010
• Provides the best starting-line cold holding power
• Recommended for vehicles going 150 MPH or less in the 1/4 mile

Aluminum Caliper Mounts
• Billet one piece design
• Eliminates bolts, spacers & nuts that require periodic maintenance

Housing End Bolt Kit
• Provides additional components not supplied in most aftermarket kits

Need More Wheel Clearance?
Evolution 4 Low Profile Caliper Option – OPRB10

Want Billet Calipers?
Evolution 4 Billet Caliper Option – OPRB07

Brake Hoses and Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with a straight male 3 AN fitting

Use Teflon® tape or liquid on the pipe threads of the fitting
Leave a few threads from the tip uncoated
This will avoid depositing material inside the caliper
Torque fitting to 25 ft lbs
