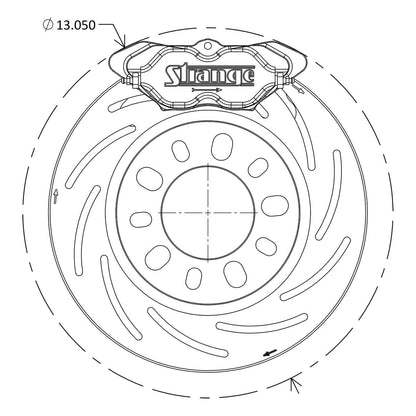

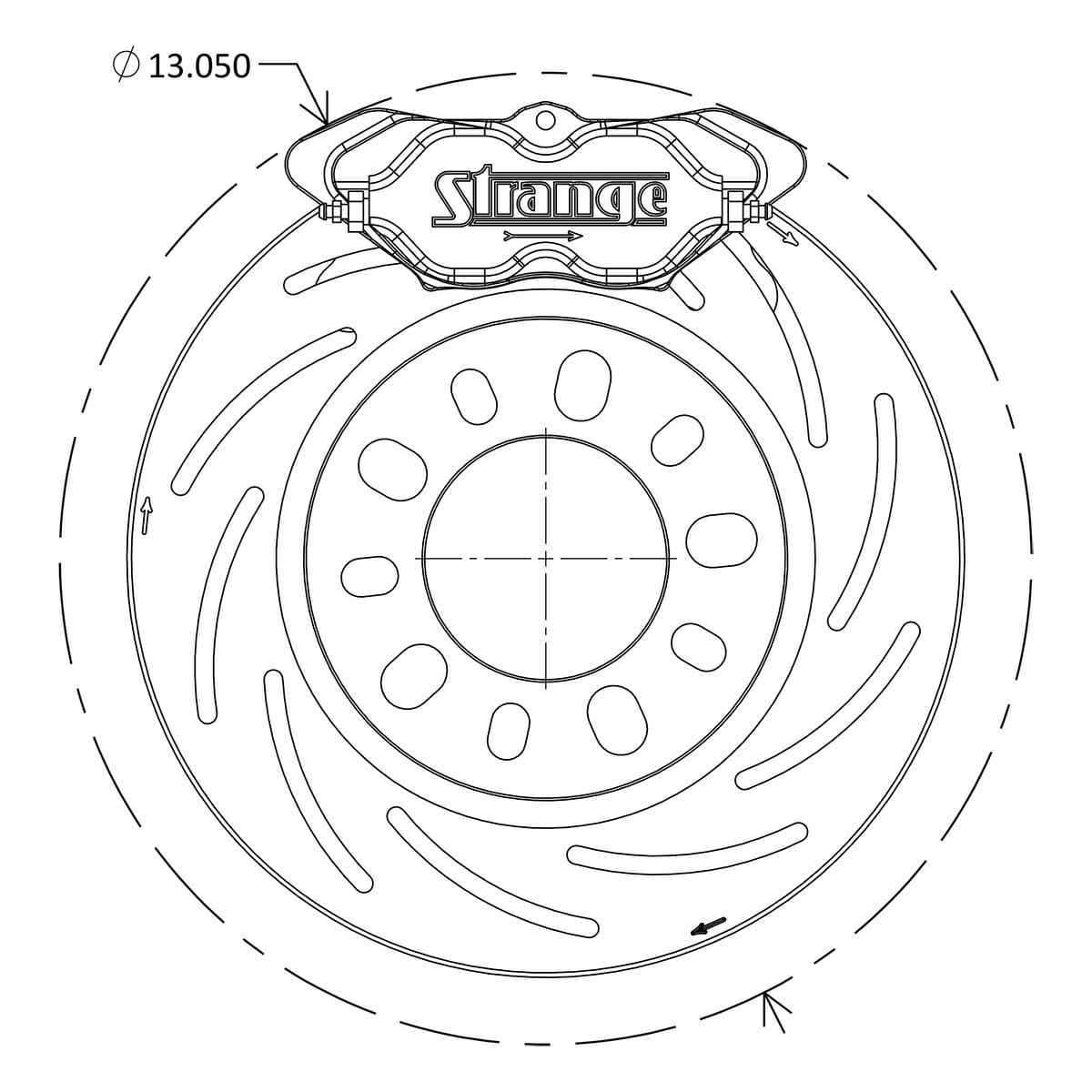

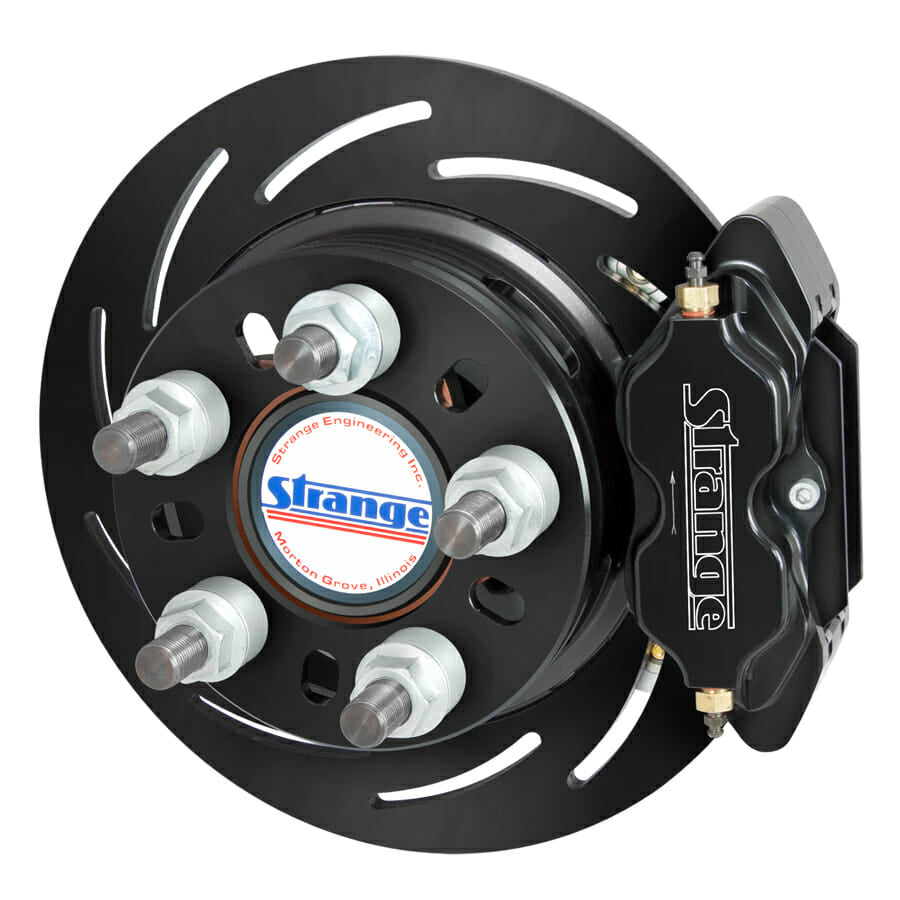

Strange Engineering Pro Series II Rear Brake Kit For Mopar Housing Ends - Includes Axle Bearings With 2 Pc Slotted Rotors, Four Piston Calipers & Soft Metallic Pads

Designed Specifically For Drag Racing

Application
Rear Brake Kit for Mopar Housing Ends – H1133
Replaces B or E-body drum brakes

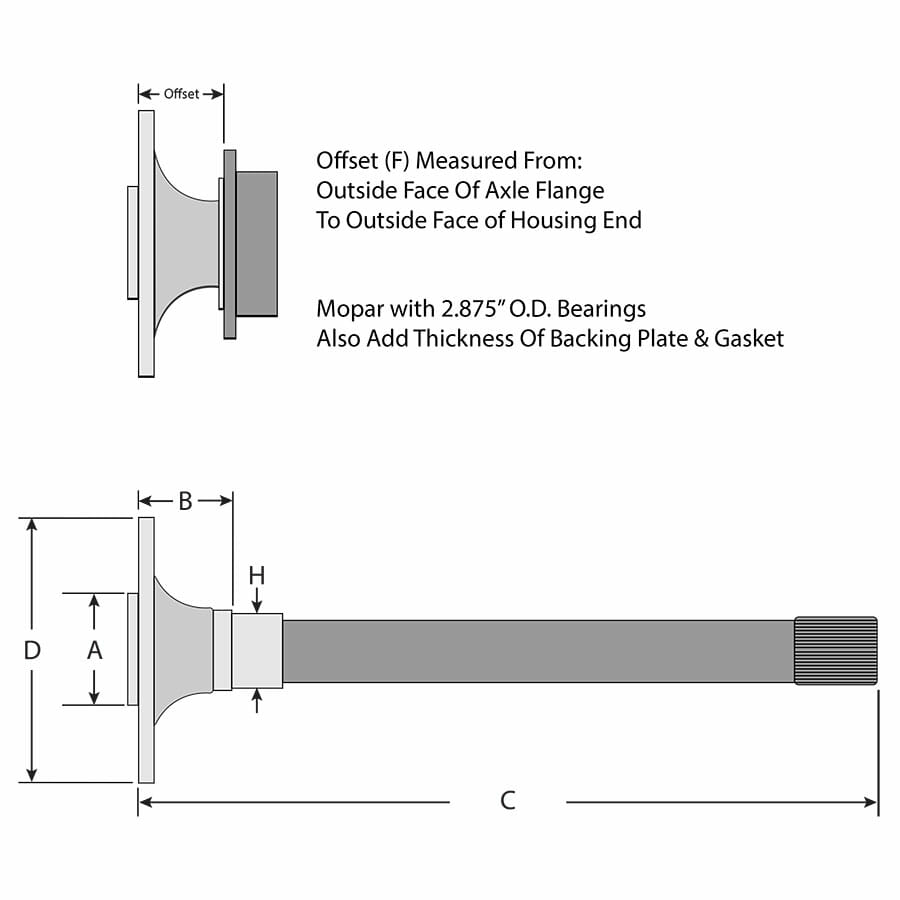

For Axles with B Dimension of 2.5625″
Won’t Fit Any Other B Dimension

Brake Offset = 2.663″

Includes

Two Piece Floating Slotted Steel Rotors – B2794L / B2794R
• Isolates rotor from hat section
• Eliminates pulling forces that can result in cupped rotors
• Slots improve air flow, assist in warpage prevention and reduce weight

Four Piston Directional Calipers – B5002 / B5004
• Aluminum bodies drastically reduce weight
• 1.625″ & 1.750″ pistons vary pressure decreasing pad taper
• Stainless steel pistons resist corrosion
• Anti-rattle clips reduce brake pad vibration and noise

Soft Metallic Brake Pads – B5010
• Provides the best starting-line cold holding power
• Recommended for vehicles going 150 MPH or less in the 1/4 mile

Aluminum Caliper Mounts
• Billet one piece design
• Eliminates bolts, spacers & nuts that require periodic maintenance

Axle Bearings – A1022
• Ball style bearings
• HD retainer plates
• Spiro-Lock retention system

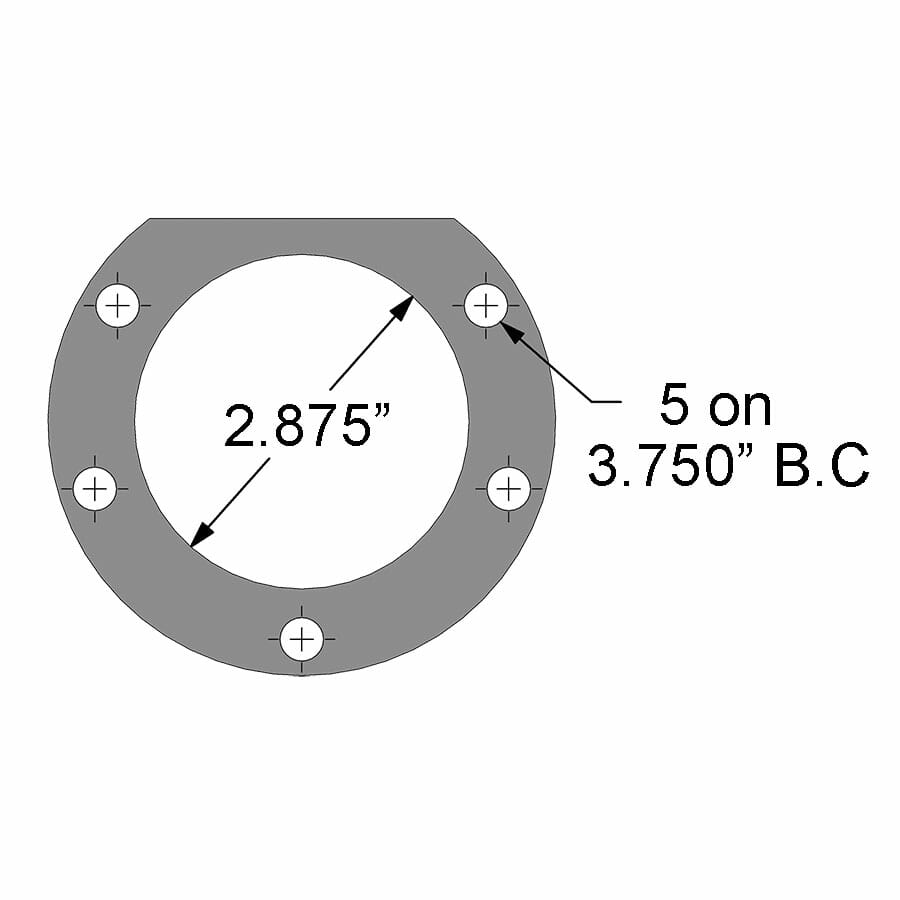

Housing End Stud Kit – H1133STKIT
• Provides additional components not supplied in most aftermarket kits

Need More Wheel Clearance?
Evolution 4 Low Profile Caliper Option – OPRB10

Want Billet Calipers?
Evolution 4 Billet Caliper Option – OPRB07

Brake Hoses and Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with a straight male 3 AN fitting

Use Teflon® tape or liquid on the pipe threads of the fitting
Leave a few threads from the tip uncoated
This will avoid depositing material inside the caliper
Torque fitting to 25 ft lbs
