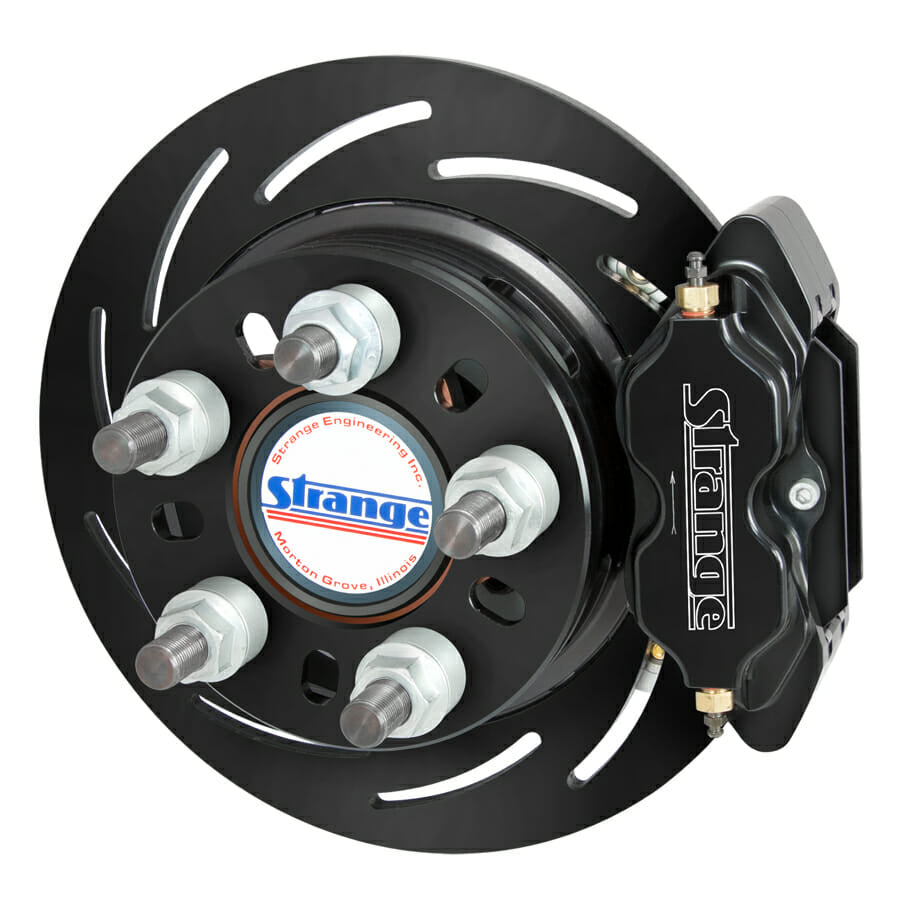

Strange Engineering Pro Series II Rear Brake Kit For Mopar Housing Ends – Includes Axle Bearings With 2 Pc Slotted Rotors, Four Piston Calipers & Hard Metallic Pads

Designed Specifically For Drag Racing

Application
Brake Kit for Mopar Housing Ends – H1133
Replaces B or E-body drum brakes

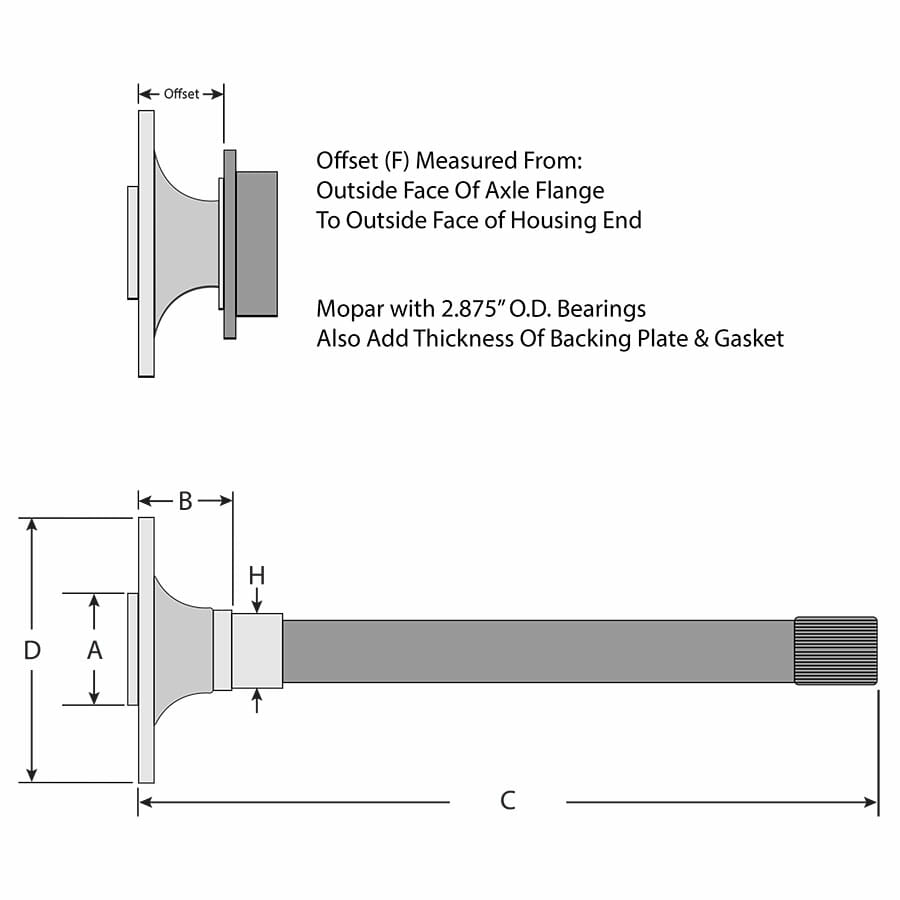

For Axles with B Dimension of 2.5625″
Won’t Fit Any Other B Dimension

Brake Offset = 2.663″

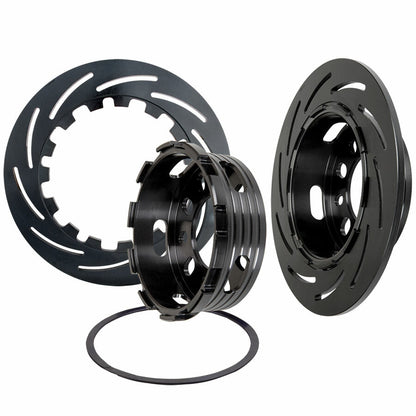

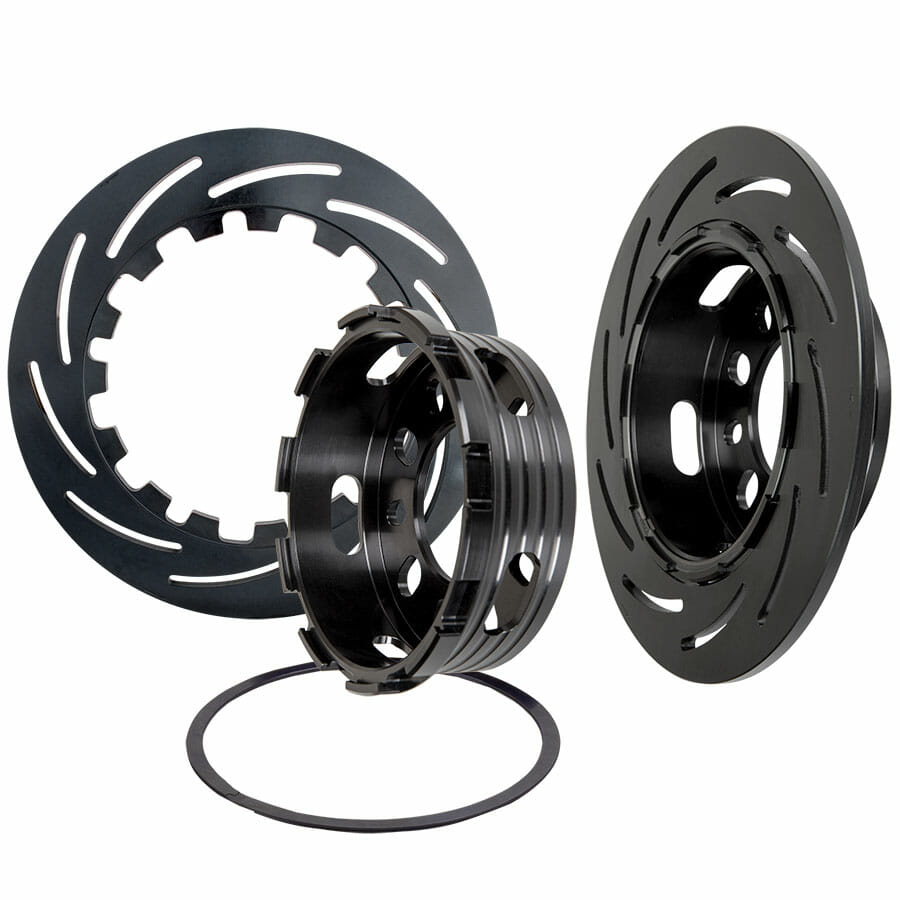

Two Piece Floating Slotted Steel Rotors – B2794L / B2794R
• Isolates rotor from hat section
• Eliminates pulling forces that can result in cupped rotors
• Slots improve air flow, assist in warpage prevention and reduce weight
• 4 1/2″, 4 3/4″ & 5″ Uni-Lug bolt circles for both 1/2″ & 5/8″ studs

Four Piston Directional Calipers – B5002 / B5004
• Aluminum bodies drastically reduce weight
• 1.625″ & 1.750″ pistons vary pressure decreasing pad taper
• Stainless steel pistons resist corrosion
• Anti-rattle clips reduce brake pad vibration and noise

Hard Metallic Brake Pads – B5020
• Provides high resistance to brake fade
• Recommended for vehicles going over 150 MPH in the 1/4 mile
• Maintains decent starting-line cold holding capabilities
• May leave pad residue on rotors when not using parachute
• While common, it’s recommended to remove when installing new pads

Aluminum Caliper Mounts
• Billet one piece design
• Eliminates bolts, spacers & nuts that require periodic maintenance

Axle Bearings – A1022
• Ball style bearings
• HD retainer plates
• Spiro-Lock retention system

Housing End Stud Kit – H1133STKIT
• Provides additional components not supplied in most aftermarket kits

Need More Wheel Clearance?
Evolution 4 Low Profile Caliper Option – OPRB10

Want Billet Calipers?
Evolution 4 Billet Caliper Option – OPRB07

Brake Hoses and Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with a straight male 3 AN fitting

Use Teflon® tape or liquid on the pipe threads of the fitting
Leave a few threads from the tip uncoated
This will avoid depositing material inside the caliper
Torque fitting to 25 ft lbs
