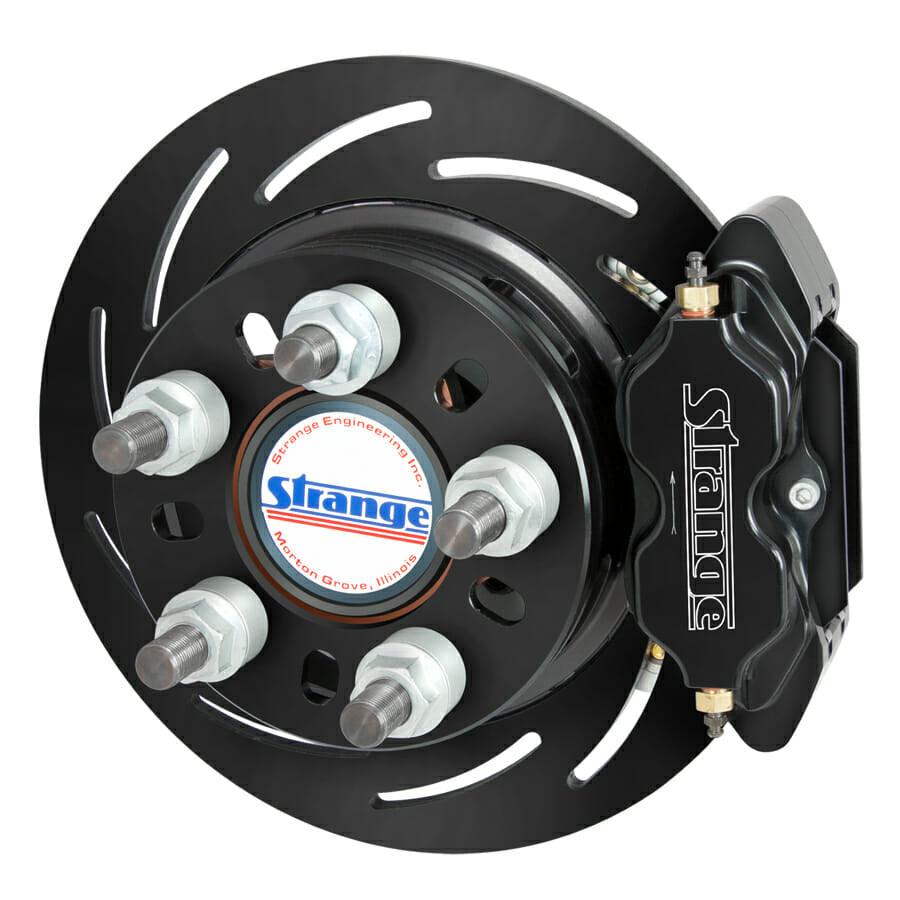

Strange Engineering Pro Series II Rear Brake Kit For H1147 Ends with 2.500" Brake Offset With 2 Pc Slotted Rotors, Four Piston Calipers & Hard Metallic Pads

Designed Specifically For Drag Racing

Application

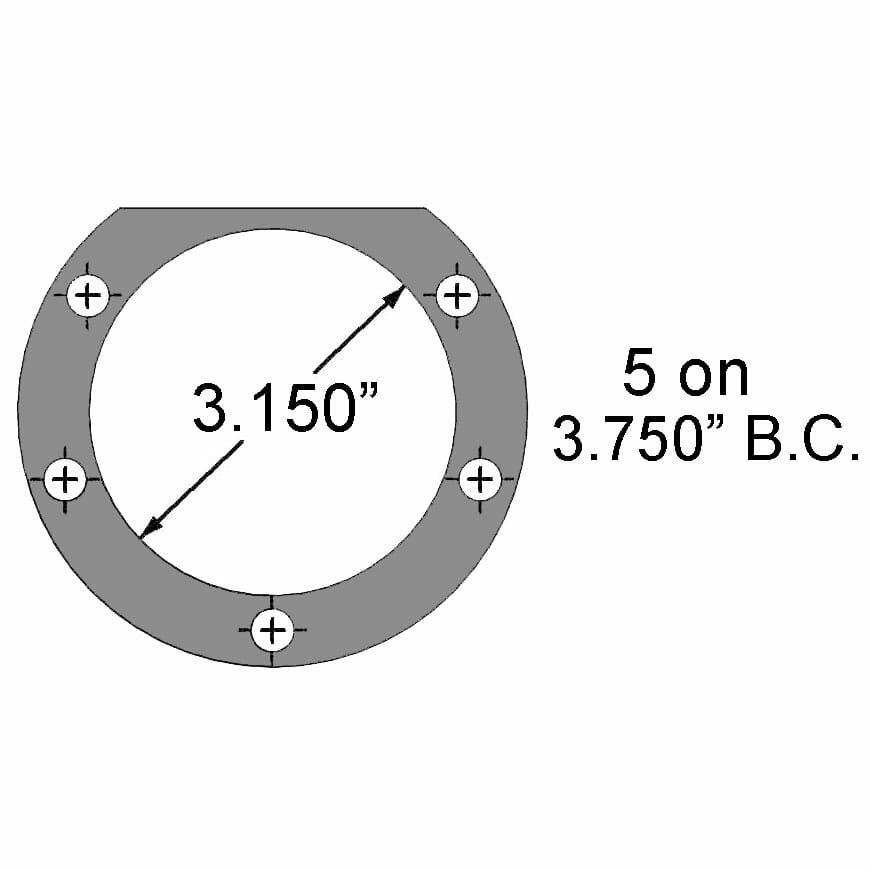

Brake Kit for Strange 3.150″ Mopar Housing Ends

Requires
• Strange ends – H1147
• 2.500″ brake offset
• Ball style axle bearings *

* Caliper mount relief isn’t correct for tapered bearings

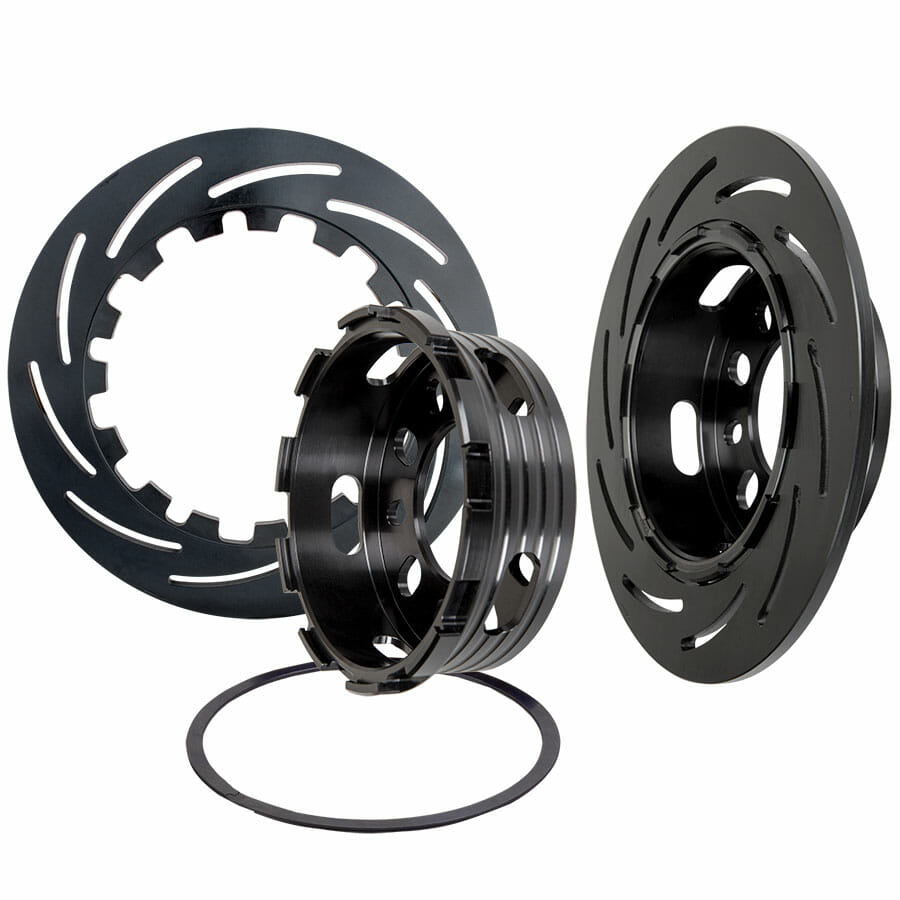

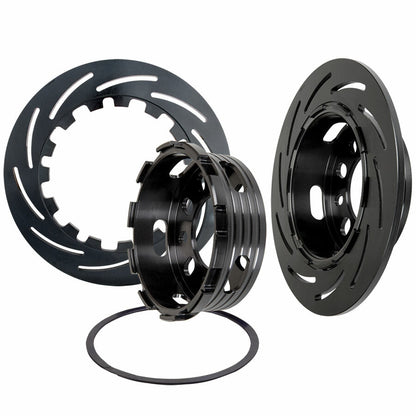

Two Piece Floating Slotted Steel Rotors – B2794L / B2794R
• Isolates rotor from hat section
• Eliminates pulling forces that can result in cupped rotors
• Slots improve air flow, assist in warpage prevention and reduce weight
• 4 1/2″, 4 3/4″ & 5″ Uni-Lug bolt circles for both 1/2″ & 5/8″ studs

Four Piston Directional Calipers – B5002 / B5004
• Aluminum bodies drastically reduce weight
• 1.625″ & 1.750″ pistons vary pressure decreasing pad taper
• Stainless steel pistons resist corrosion
• Anti-rattle clips reduce brake pad vibration and noise

DRM-35 Metallic Brake Pads – B5020
• Provides high resistance to brake fade
• Recommended for vehicles going over 150 MPH in the 1/4 mile
• Maintains decent starting-line cold holding capabilities
• May leave pad residue on rotors when not using parachute
• While common, it’s recommended to remove when installing new pads

Aluminum Caliper Mounts
• Billet one piece design
• Eliminates bolts, spacers & nuts that require periodic maintenance

Housing End Stud Kit – H1133STKIT
• Provides additional components not supplied in most aftermarket kits
