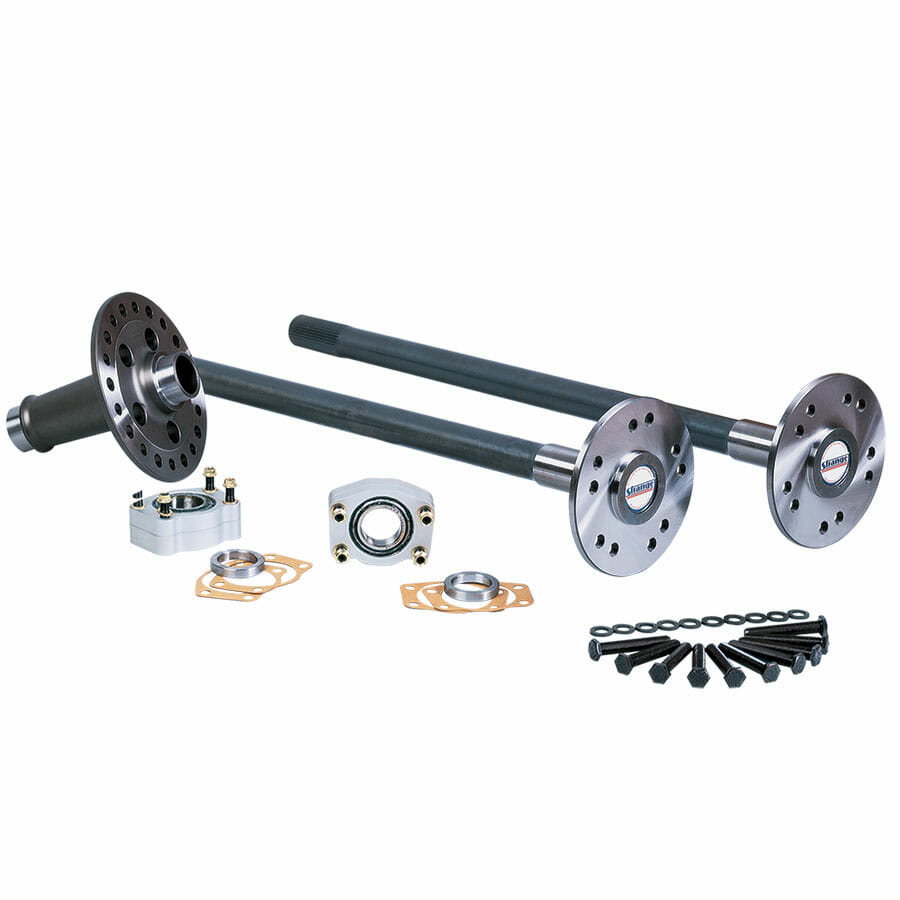

Strange Engineering 86-93 Mustang Drag Race Axle & Spool Pkg 35 Spl Axles, Eliminator Kit, 1/2" Studs & Spool

Hy-Tuf axles are optimized for Drag Race use only
See our Alloy axle packages for street / track applications

Package Includes
Hy-Tuf Ultra Strength Axles – A1000
• Forged from low carbon, high manganese, high nickel, and high molybdenum steel
• Majority of machining performed before heat treat to provide consistent hardness
• Thru hardened to Rc 45-48 to maximize the materials torsional strength
• Finish machined after heat treat to ensure accuracy
• Upgraded to 35 spline axles
• Custom lengths available at no extra charge
• Choice of bolt circle
• Designed and machined by Strange Engineering
• Forged in the USA

C-Clip Eliminator Kit – A1090
• Billet aluminum halves to accept OEM drum brakes *
• Chrome moly studs installed in outer halves
• Timken® Tapered Unit bearings for long bearing life
• Locking rings
• Outer seals
• Gaskets, washers, & flanged locking nuts

* Will also work with aftermarket disc brake kits designed for use with eliminator kit

1/2″-20 Screw-in Wheel Studs – A1025 / A1026
• Chrome moly material
• Threads are rolled for maximum strength
• Choice of 2″ or 3″ long studs *
• Includes .060″ hardened washers

* Measured from underneath the hex of the stud

Lightweight Steel Spool – D1567
• Forged from premium 4140 steel
• Lightened to maximize strength to weight
• Forged in the USA
• Designed and machined by Strange Engineering

Options
Install eliminator kit……………………… A1008C
Install eliminator kit & studs……….. A1008SC
Lightening holes in flange……………… A1003
Ultra Light flange…………………………… A1006

Other Packages
Pro Race
1994-2004…………………………………. P2000FM94
2005-2014…………………………………. P2000FM05

Alloy
1986-1993…………………………………. P3509F86S
1994-2004…………………………………. P3509F94S
2005-2014…………………………………. P3509F05S
