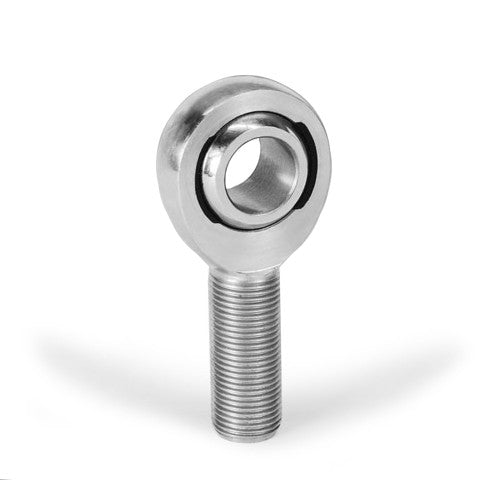

5/8" X 1/2" Right Hand (RH) Rod End - Heim Joint
5/8" X 1/2" Right Hand (RH) Rod End - Heim Joint
SKU:
MXM-10-8
Regular price
$16.00 USD
Regular price
Sale price
$16.00 USD
Couldn't load pickup availability
MXM-10-8, Bearings, Spherical Rod End, Male 5/8-18 RH Chrome Moly Housing, Slotted Nylon Race 0.501 Bore
Bearing Race: slotted nylon
Ball: heat treated, hard chrome plated bearing steel
Finish: bright polished chrome
Housing: 4130 heat treated chrome moly steel

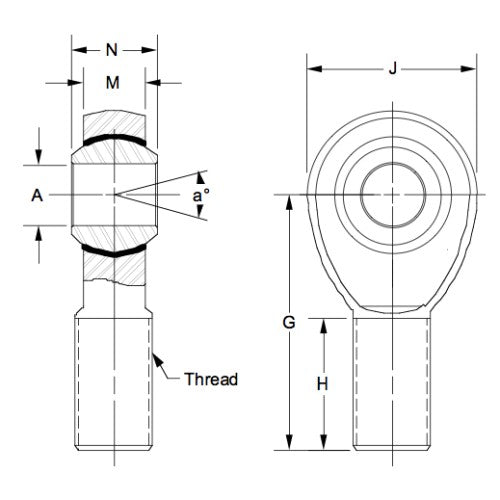

| Threads | A | G | H | J | M | N | a° | Ultimate Radial Static Load (lbs) |
|---|---|---|---|---|---|---|---|---|
| 5/8-18 RH | 0.501 | 2.625 | 1.625 | 1.500 | 0.484 | 0.750 | 44 | 14,356 lbs 63,855 N |
