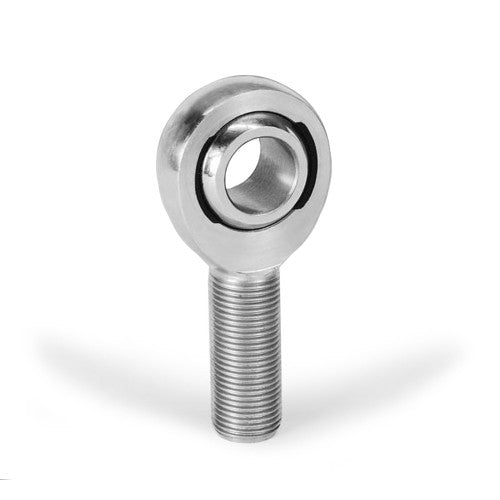

5/8" X 1/2" Left Hand (LH) Rod End - Heim Joint

5/8" X 1/2" Left Hand (LH) Rod End - Heim Joint

SKU:

MXML-10-8

$16.00 USD
$16.00 USD
Sale Sold out

MXML-10-8, Bearings, Spherical Rod End, Male 5/8-18 LH Chrome Moly Housing, Slotted Nylon Race 0.501 Bore
Bearing Race: slotted nylon

Ball: heat treated, hard chrome plated bearing steel

Finish: bright polished chrome

Housing: 4130 heat treated chrome moly steel

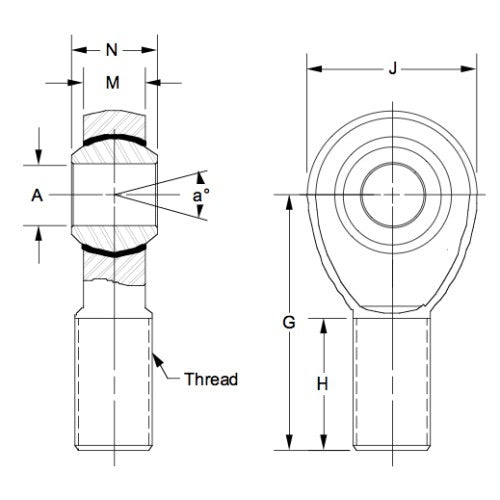

Threads A G H J M N a° Ultimate Radial Static Load (lbs)
5/8-18 LH 0.501 2.625 1.625 1.500 0.484 0.750 44 14,356 lbs 63,855 N
